磅级三通旋塞阀
详细介绍
磅级三通旋塞阀 ANSI 3-Way plug Valve

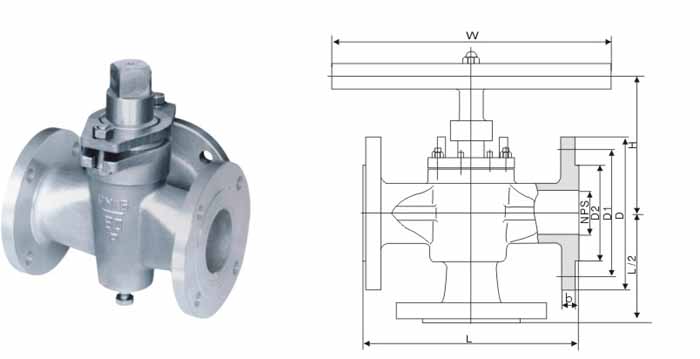

主要外形和连接尺寸Main Extemal and Connection Dimension
|
产品型号
|
NPS
|
DN
|
Class 150Lb
|
WT
(kg)
|
|
in
|
mm
|
L
|
L1
|
D
|
D1
|
D2
|
b
|
Z-Φd
|
H
|
W
|
Do
|
|
X44F-150Lb
X344F-150Lb
X44F-150LbP
X344F-150LbP
X44F-150LbR
X344F-150LbR
|
1/2"
|
15
|
108
|
68
|
89
|
60.5
|
35
|
11
|
4-Φ15
|
150
|
300
|
-
|
9.5
|
|
3/4"
|
20
|
117
|
73
|
98
|
70
|
43
|
11
|
4-Φ15
|
155
|
300
|
-
|
12
|
|
1"
|
25
|
127
|
80
|
108
|
79.5
|
51
|
12
|
4-Φ15
|
160
|
300
|
-
|
14
|
|
11/4"
|
32
|
140
|
85
|
117
|
89
|
64
|
13
|
4-Φ15
|
180
|
350
|
-
|
16
|
|
11/2"
|
40
|
165
|
95
|
127
|
98.5
|
73
|
15
|
4-Φ15
|
190
|
400
|
-
|
21
|
|
2"
|
50
|
178
|
110
|
152
|
120.5
|
92
|
16
|
4-Φ19
|
200
|
500
|
-
|
27
|
|
21/2"
|
65
|
190
|
125
|
178
|
139.5
|
105
|
18
|
4-Φ19
|
220
|
500
|
-
|
38
|
|
3"
|
80
|
203
|
130
|
190
|
152.5
|
127
|
19
|
4-Φ19
|
230
|
500
|
-
|
49
|
|
4"
|
100
|
229
|
155
|
229
|
190.5
|
157
|
24
|
4-Φ19
|
380
|
-
|
300
|
57
|
|
6"
|
150
|
267
|
185
|
279
|
241.5
|
216
|
26
|
8-Φ22
|
520
|
-
|
320
|
71
|
|
8"
|
200
|
292
|
225
|
343
|
298.5
|
270
|
29
|
8-Φ22
|
580
|
-
|
320
|
94
|
|
10"
|
250
|
330
|
260
|
406
|
362
|
324
|
31
|
12-Φ25
|
620
|
-
|
350
|
155
|
|
12"
|
300
|
356
|
300
|
483
|
432
|
381
|
32
|
12-Φ25
|
680
|
-
|
380
|
237
|
|
产品型号
|
NPS
|
DN
|
Class 150Lb
|
WT
(kg)
|
|
in
|
mm
|
L
|
L1
|
D
|
D1
|
D2
|
b
|
Z-Φd
|
H
|
W
|
Do
|
|
X44F-300Lb
X344F-300Lb
X44F-300LbP
X344F-300LbP
X44F-300LbR
X344F-300LbR
|
1/2"
|
15
|
140
|
75
|
95
|
66.5
|
35
|
15
|
4-Φ15
|
150
|
300
|
-
|
10.5
|
|
3/4"
|
20
|
152
|
91
|
117
|
82.5
|
43
|
16
|
4-Φ19
|
155
|
300
|
-
|
13.5
|
|
1"
|
25
|
165
|
95
|
124
|
89
|
51
|
18
|
4-Φ19
|
160
|
300
|
-
|
16
|
|
11/4"
|
32
|
178
|
100
|
133
|
98.5
|
64
|
19
|
4-Φ19
|
180
|
350
|
-
|
18
|
|
11/2"
|
40
|
190
|
120
|
156
|
114.5
|
73
|
21
|
4-Φ22
|
190
|
400
|
-
|
23
|
|
2"
|
50
|
216
|
125
|
165
|
127
|
92
|
23
|
8-Φ19
|
200
|
500
|
-
|
31
|
|
21/2"
|
65
|
241
|
140
|
190
|
149
|
105
|
26
|
8-Φ22
|
220
|
500
|
-
|
41
|
|
3"
|
80
|
283
|
155
|
210
|
168.5
|
127
|
29
|
8-Φ22
|
230
|
500
|
-
|
54
|
|
4"
|
100
|
305
|
185
|
254
|
200
|
157
|
32
|
8-Φ22
|
380
|
-
|
300
|
61
|
|
6"
|
150
|
403
|
220
|
318
|
270
|
216
|
37
|
12-Φ22
|
520
|
-
|
320
|
75
|
|
8"
|
200
|
419
|
257
|
381
|
330
|
270
|
42
|
12-Φ25
|
580
|
-
|
320
|
98
|
|
10"
|
250
|
457
|
300
|
445
|
387.5
|
324
|
48
|
14-Φ25
|
620
|
-
|
350
|
166
|
|
12"
|
300
|
502
|
340
|
521
|
451
|
381
|
51
|
14-Φ25
|
680
|
-
|
380
|
243
|
