意大利式超薄型球阀
详细介绍

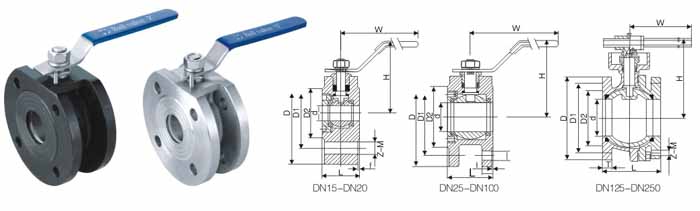

意大利式超薄型球阀 Italy-Thin Ball Valve
特点： Feature
一体式结构设计（DN125以上为分体结构） 1PC Body（2PC Body for Dn125and Over）
全通径流量 Full Bore
产品规格从DN15~DN250 Size：1/2″to10″
结构长度按Q/SYF012-96制造 Face to face Q/SYF012-96
法兰也能按GB/T9113制造 Flanged Standard GB/T9113
阀门检测和试验按API598 Checked and Tested per API598
手柄或涡轮传动 Handle or Gear Box operated
材料列表Materiallist
|
No
|
部件名称Part Name
|
材料Material
|
|
1
|
阀体Body
|
WCB
|
CF8M
|
|
2
|
阀盖Cap
|
WCB
|
CF8M
|
|
3
|
阀座Seat
|
PTFE
|
|
4
|
球Ball
|
SS304
|
SS316
|
|
5
|
密封圈Seal Ring
|
PTFE
|
|
6
|
阀杆密封Stem Seal
|
PTFE
|
|
7
|
阀杆Stem
|
SS316
|
|
8
|
防静电装置Anti-Static Device
|
SS304
|
|
9
|
阀杆填料Stem Packing
|
PTFE
|
|
10
|
填料压盖Packing
|
SS304
|
|
11
|
弹性垫圈Spring Washer
|
SS304
|
|
12
|
手柄Handle
|
SS304
|
|
13
|
螺母Stem Nut
|
SS304
|
尺寸列表Dimension List 单位 Unit: mm
|
DN
|
d
|
D
|
D1
|
D2
|
T
|
F
|
L
|
W
|
H
|
Z-M
|
D
|
D1
|
D2
|
T
|
F
|
L
|
W
|
H
|
Z-M
|
|
15
|
15
|
95
|
65
|
45
|
-
|
2
|
35
|
120
|
60
|
4-Φ12
|
95
|
65
|
46
|
-
|
2
|
35
|
120
|
65
|
4-Φ12
|
|
20
|
20
|
105
|
75
|
55
|
-
|
2
|
38
|
120
|
65
|
4-Φ12
|
105
|
75
|
56
|
-
|
2
|
38
|
120
|
71
|
4-Φ12
|
|
25
|
25
|
115
|
85
|
65
|
10
|
2
|
42
|
140
|
70
|
4-M12
|
115
|
85
|
65
|
10
|
2
|
42
|
140
|
76
|
4-M12
|
|
32
|
32
|
135
|
100
|
78
|
18
|
2
|
52
|
170
|
90
|
4-M16
|
135
|
100
|
75
|
18
|
3
|
52
|
170
|
98
|
4-M16
|
|
40
|
38
|
145
|
110
|
85
|
18
|
2
|
62
|
200
|
95
|
4-M16
|
145
|
110
|
85
|
18
|
3
|
62
|
200
|
105
|
4-M16
|
|
50
|
45.5
|
160
|
125
|
100
|
18
|
2
|
72
|
240
|
128
|
4-M16
|
160
|
125
|
100
|
18
|
3
|
72
|
240
|
128
|
4-M16
|
|
65
|
58
|
180
|
145
|
120
|
20
|
2
|
96
|
280
|
135
|
4-M16
|
180
|
145
|
120
|
20
|
3
|
96
|
280
|
145
|
8-M16
|
|
80
|
73
|
195
|
160
|
135
|
22
|
3
|
118
|
320
|
145
|
8-M16
|
195
|
160
|
135
|
22
|
3
|
118
|
320
|
170
|
8-M16
|
|
100
|
93
|
215
|
180
|
155
|
24
|
3
|
138
|
400
|
160
|
8-M16
|
230
|
190
|
160
|
24
|
3
|
138
|
400
|
185
|
8-M16
|
|
125
|
120
|
245
|
-
|
185
|
26
|
3
|
200
|
580
|
177
|
8-M16
|
270
|
220
|
188
|
26
|
3
|
200
|
450
|
205
|
8-M16
|
|
150
|
145
|
280
|
-
|
210
|
28
|
3
|
225
|
700
|
237
|
8-M20
|
300
|
250
|
218
|
28
|
3
|
225
|
500
|
225
|
8-M20
|
|
200
|
198
|
335
|
-
|
265
|
30
|
3
|
275
|
700
|
280
|
12-M20
|
360
|
310
|
278
|
30
|
3
|
275
|
600
|
240
|
12-M20
|
